Wildfire tips-Create Dummy Axis

Hello friends,

Here i am going to tell about Dummy axis....

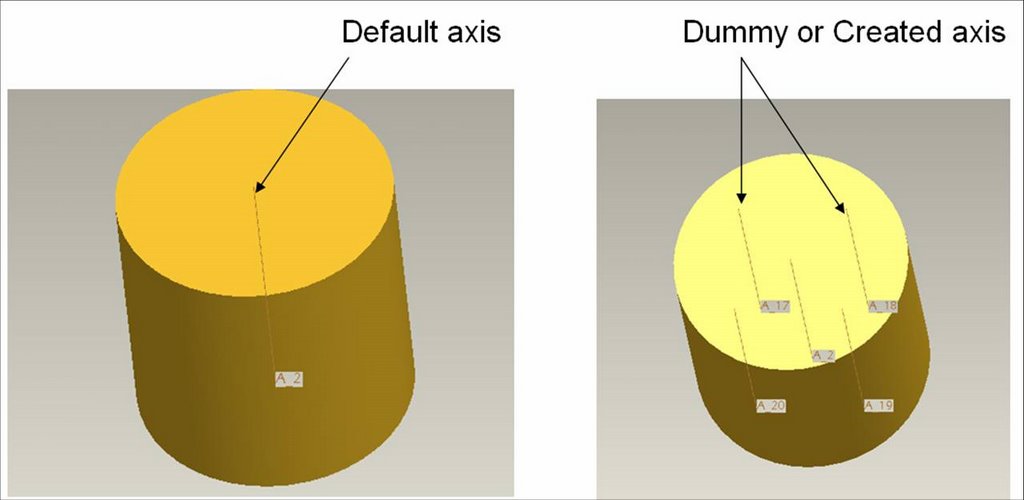

Pro/e generates default axis for curved geometry while making CUT,PROTRUSION or REVOLVE.
Other than Default axis, We can make Dummy axis as shown in picture-2 by using "AXIS POINT"


How to make it?

In sketcher mode of PROTRUSION or CUT Select Sketch/Axis Point

Place the axis point where ever you need axis and select OK .then We will get axis as shown in the picture-2.
